Complex oscillator

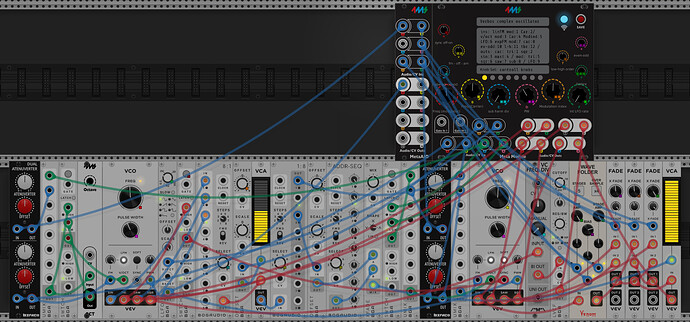

This patch recreates a complex oscillator much inspired by the Verbos Complex Oscillator with all the features present on the faceplate of the original one plus some additional goodies such as Pulse width modulation with Internal LFO (with a dedicate out for modulating other parameters), a switch to get the v/oct of the Carrier to be normaled to the v/oct of the modulator, and a sub harmonic frequency divider (Sub oscillator) based on the squarewave of the modulator.
There’s two Knob sets. One for the main control Knobs (That contain also LFO Rate) and one for the attenuverters for cv inputs (That also contains V/oct normalisation switch and LFO Wave selector)
When switching to v/oct to “normal” (knob turned CC), In 4 (v/oct of the Carrier) becomes inactive and the modulator is transposed some octaves higher to operate in the same range as the Carrier.
I tried to make the patching process simple with colour coding:
cv ins: linear FM modulator:1 Carrier:2 / v/oct mod:3 Car:4 / Modulation index:5 / LFO rate:6 / exponential FM mod:7 car:8 // Wave shaper section: even-odd:10 / low-high order:11 / timbre:12 // outs: carier: triangle:1 square:2 sine:3 master:4 / modulator: triangle:5 square:6 saw:7 sub-harmonic oscillator:8 / LFO:9
Specs: runs with 32K sample rate. I/O expander needed.
Plugins: Bogaudio, Fundamental, befaco, countModula, Venom, 4ms
MetaModule version:Verbos complex oscillator.yml (22.6 KB)
vcv version:
Verbos complex oscillator.vcv (6.2 KB)

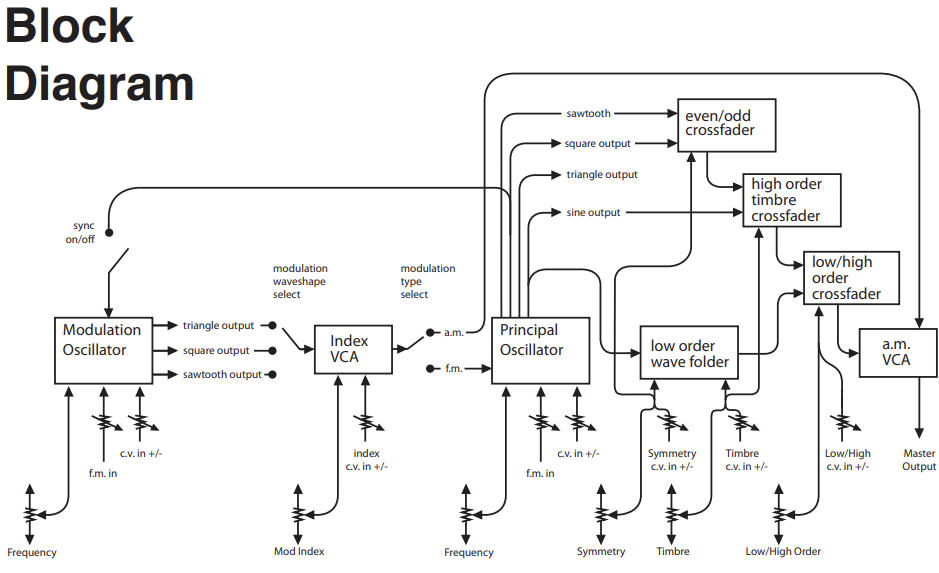

This the block diagram it’s based on:
And here a link to a small visdeo:
