Video for this patch available on YouTube here.

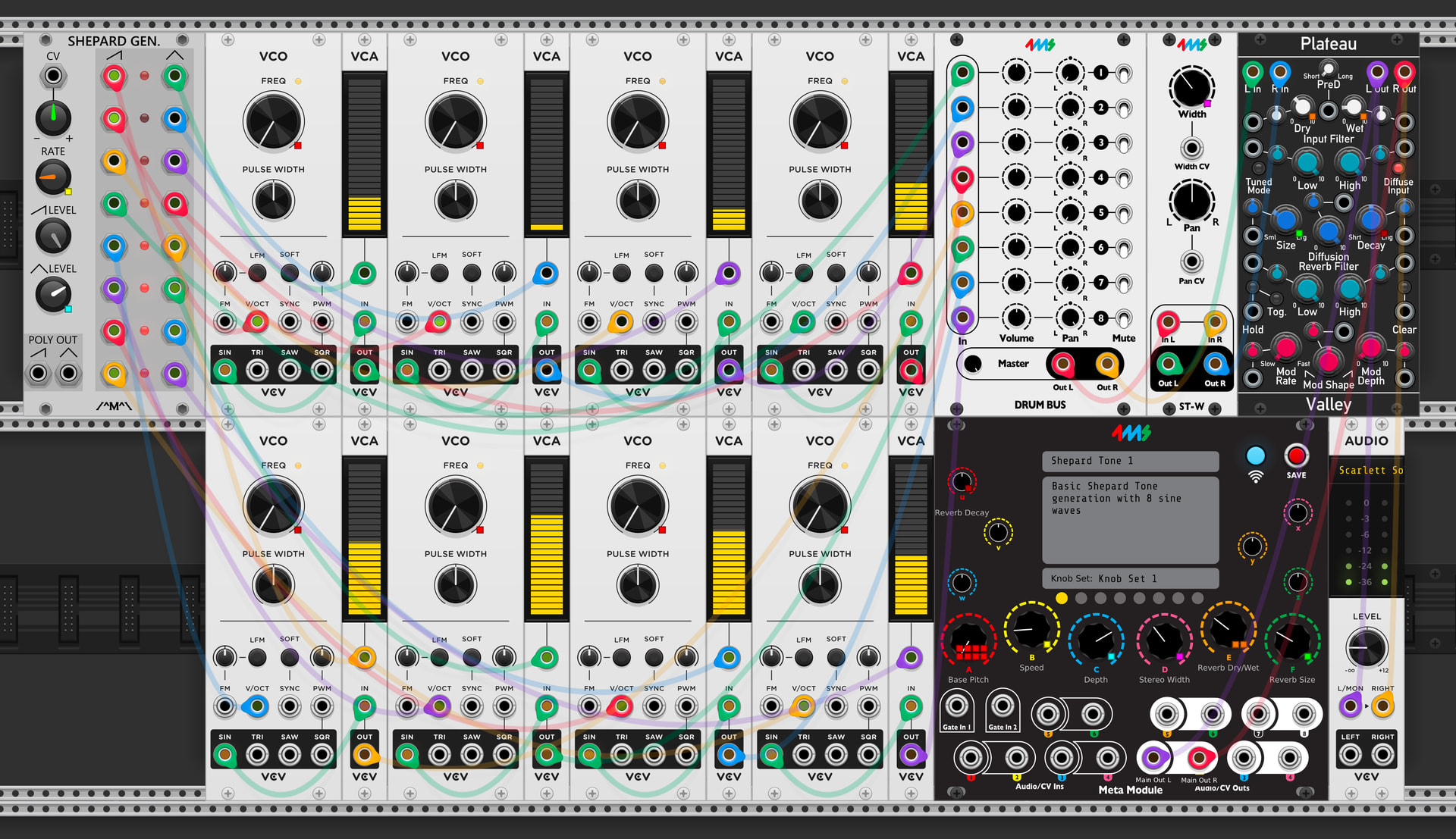

Patch 1:
External Audio Routing:
-Main audio outputs on channels 1 and 2
Internal Audio Routing:
-8 sine wave VCOs are routed to their own VCAs
-The VCAs are mixed together with a drum bus which pans every other oscillator to opposite speakers
-A Stereo Width module controls the output of the drum bus
-The Stereo Width module is fed into a reverb.
Internal CV Routing:
-The 8 sawtooth wave outputs from the Shepard Generator are fed into the 1v/Oct inlets of all 8 VCOs
-The 8 triangle wave outputs from the Shepard Generator are fed into the CV inputs of all 8 VCAs
MetaModule Knob Mapping:
A - Base pitch
B - Speed
C - Depth
D - Stereo Width
E - Reverb Dry/wet
F - Reverb Size
Shepard Tone 1.vcv (3.2 KB)
Shepard Tone 1.yml (16.0 KB)

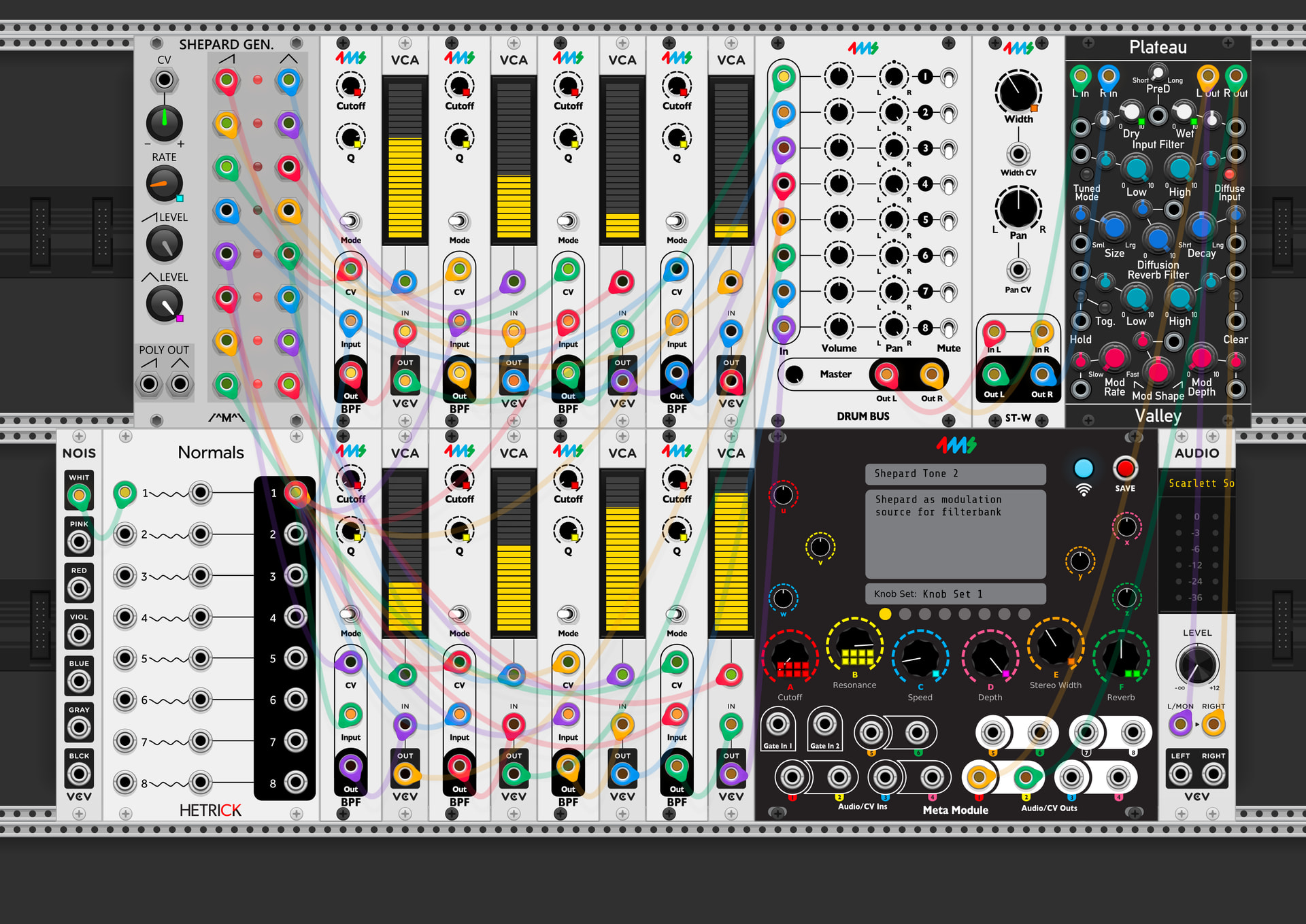

Patch 2:
External Audio Routing:
-Main audio outputs on channels 1 and 2
-Main audio input on channel 1
Internal Audio Routing:
-The main audio inlet is ran into the switched inlet of channel 1 on Normals so that the user can run external audio into the patch
-White noise is ran into the normalled input of Normals, so that when no external signal is present white noise passes through the audio chain
-The output of Normals is ran into 8 parallel bandpass filters. All bandpass filters have their own VCAs
-The VCAs are mixed together with a drum bus which pans every other filter to opposite speakers
-A Stereo Width module controls the output of the drum bus
-The Stereo Width module is fed into a reverb.
Internal CV Routing:
-The 8 sawtooth wave outputs from the Shepard Generator are fed into the frequency CV input of all 8 bandpass filters
-The 8 triangle wave outputs from the Shepard Generator are fed into the CV inputs of all 8 VCAs
MetaModule Knob Mapping:
A - Cutoff
B - Resonance
C - Speed
D - Depth
E - Stereo Width
F - Reverb
Shepard Tone 2.vcv (3.5 KB)
Shepard Tone 2.yml (15.5 KB)
