Video for this patch can be watched on YouTube here!

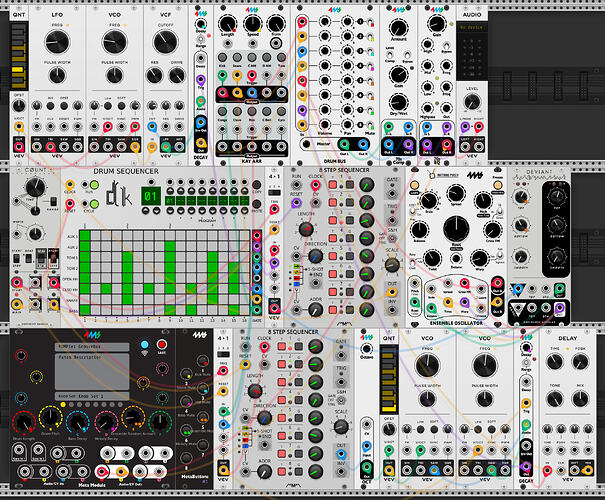

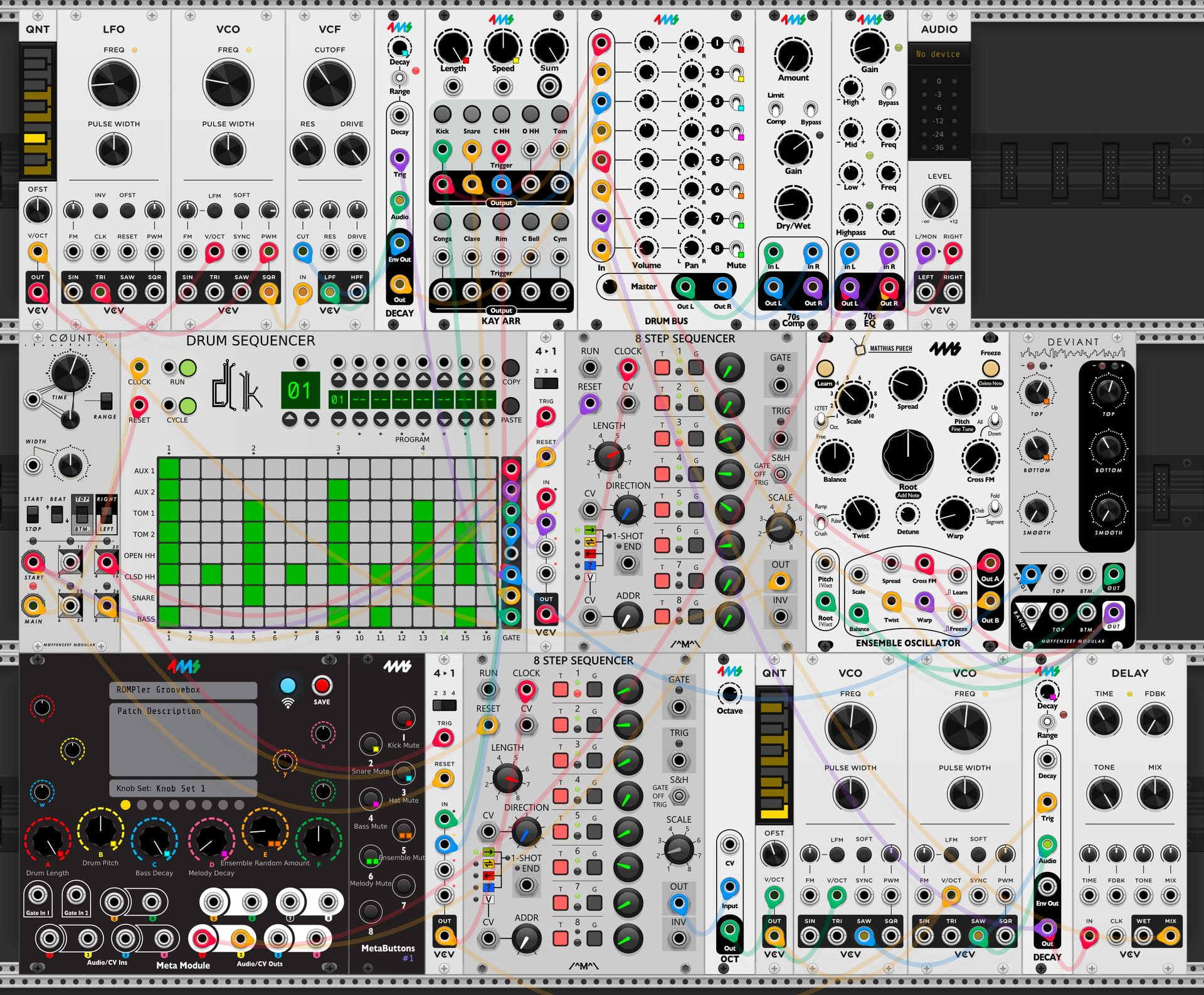

External Audio Routing:
-Main audio outputs on channels 1 and 2
Internal Audio Routing:
-The Drum Bus is used as a master mixer for mixing all sounds in the patch
-The output of the Drum Bus is ran into a 70s Comp and 70s EQ for gluing the mix
-Synth voice 1 comprises of a VCO into a lowpass into a Decay module
-Synth voice 2 is the stereo outputs of the Ensemble oscillator
-Synth voice 3 is two detuned sawtooth wave VCOs mixed into a Decay module. One side of the synth voice is panned right and the other is panned left through a delay
-The individual Kick, Snare, and Closed Hats from the Kay Arr ROMpler are ran into the drum bus
Internal Sequencing Logic:
-Count is the master clock source. The main output clocks the drum sequencer
-The reset output from Count resets all sequencers and sequential switches
-There are two separate 4>1 sequential switches that are used to chain two 8 step sequences together into a single 16 step sequence. Every 8 steps, the switches flip to select between sequence A and B.
-The gate sequence outputs from the switches clock two separate 8 step sequencers which are changing notes for the bass and melody
Internal CV routing:
-The raw CV outputs from each sequencer are quantized to a C minor scale and sent to the bass and melody.
-The Deviant is being clocked at 1/8 note intervals and is modulating Root, Cross FM, Twist, Warp, and balance on the ensemble oscillator.
MetaModule knob mapping:
A - Kay Arr drum sample length
B - Kay Arr drum pitch
C - Bass amplitude decay
D - Melody amplitude decay
E - Ensemble random modulation depth
MetaButtons mapping:
B1 - Kick mute
B2 - Snare mute
B3 - Hat mute
B4 - Bass mute
B5 - Ensemble mute
B6 - Melody mute
ROMplers Groovebox.vcv (5.4 KB)
ROMPler Groovebox.yml (42.6 KB)
