You can watch the video for these patches on YouTube here!
The WAV files for these patches can be downloaded here:

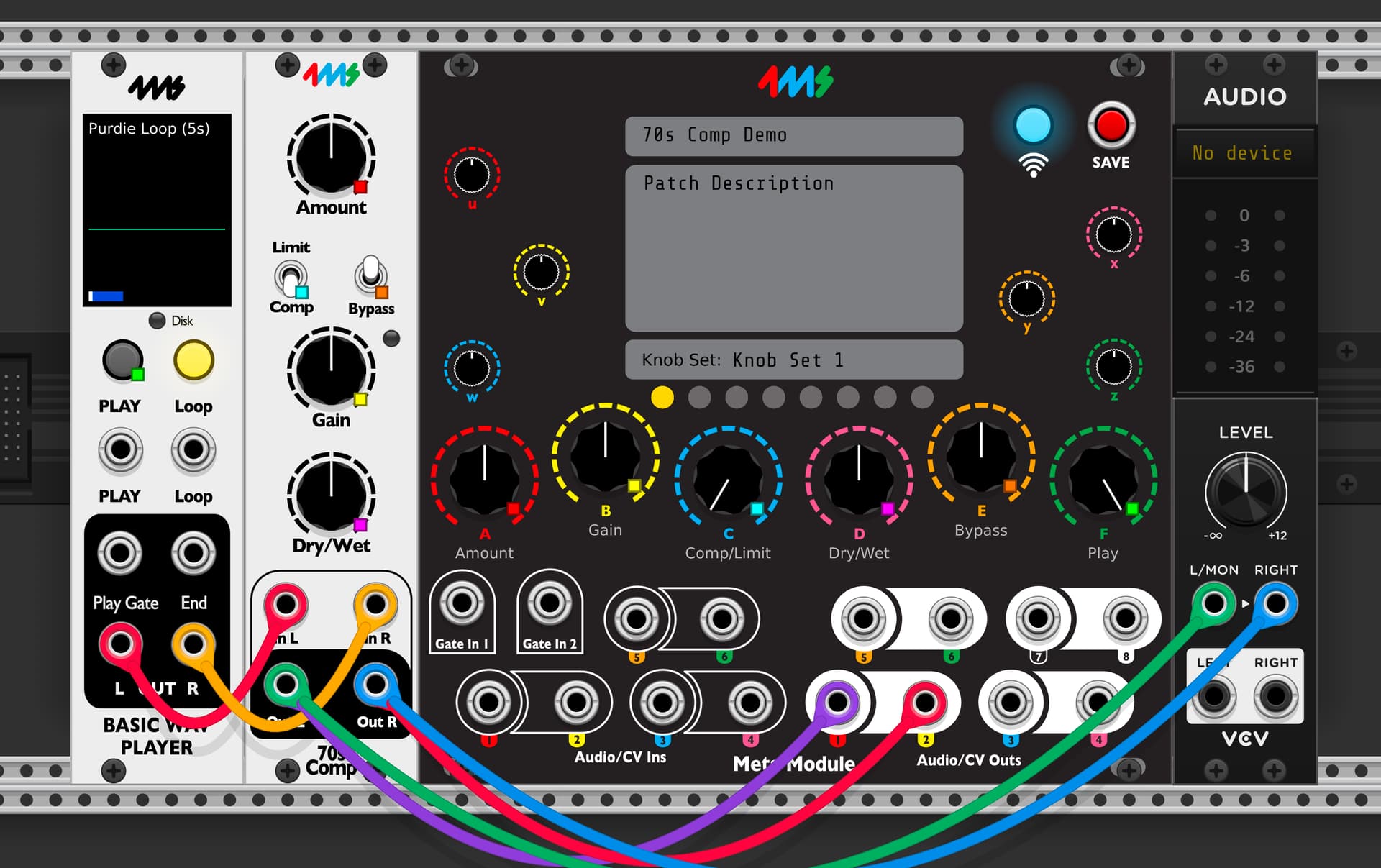

Patch #1: 70s Comp
External Audio Path:
-Main audio outputs on channels 1 and 2
Internal Audio Path:
-Stereo outs from Basic WAV player are fed into 70s comp
MetaModule Knob Mapping:
A - Comp amount
B - Makeup gain
C - Comp/limit switch
D - Dry/Wet
E - Effect bypass
F - Play: Basic WAV Player
70s Comp Demo.vcv (1.4 KB)
70s Comp Demo.yml (2.9 KB)

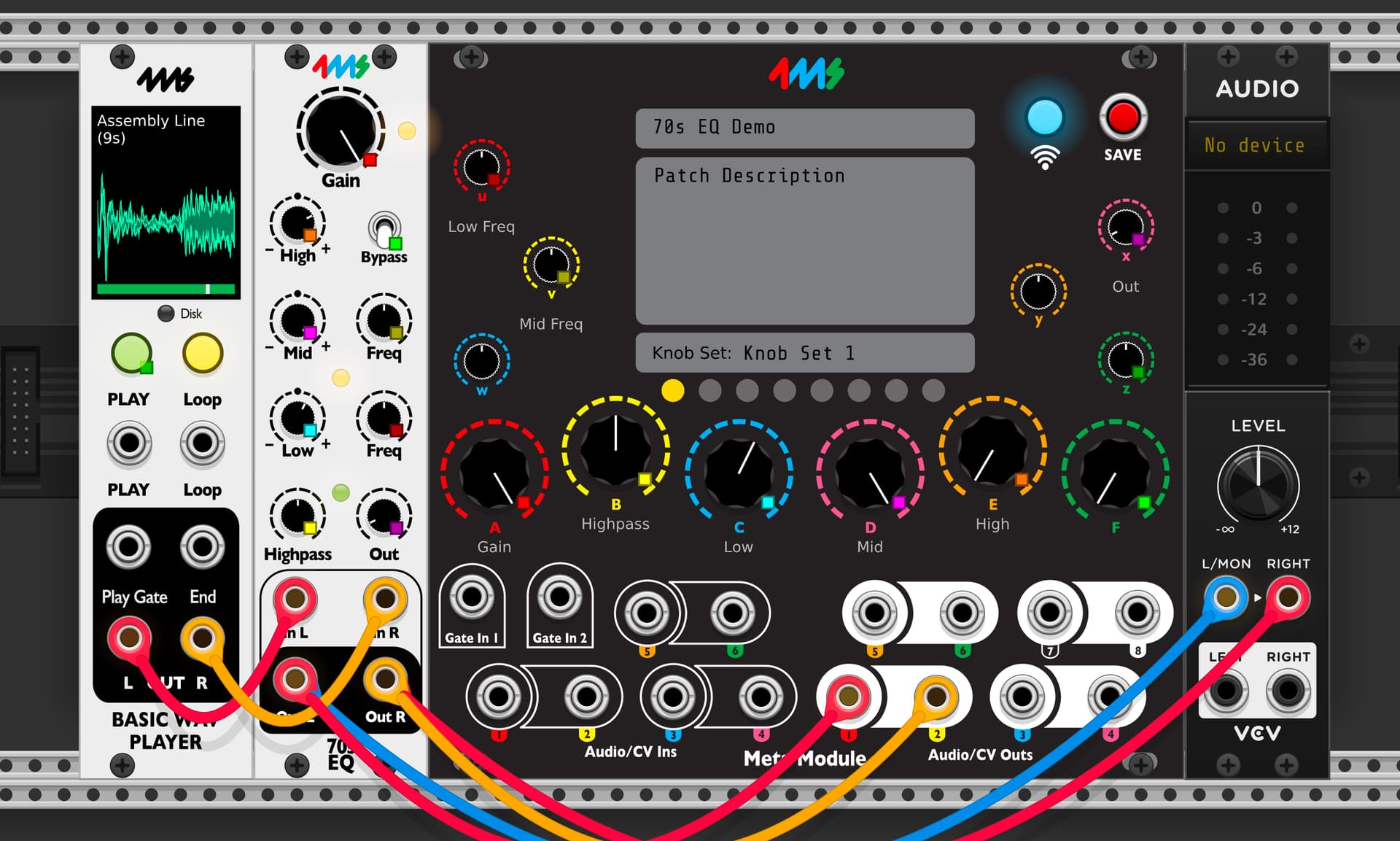

Patch #2: 70s EQ
External Audio Path:
-Main audio outputs on channels 1 and 2
Internal Audio Path:
-Stereo outs from Basic WAV player are fed into 70s EQ
MetaModule Knob Mapping:
A - Gain
B - Highpass freq select
C - Low band gain
D - Mid band gain
E - High band gain
F - Play: Basic WAV Player
U - Low band freq select
V - Mid band freq select
X - Output volume
70s EQ Demo.vcv (1.6 KB)
70s EQ Demo.yml (3.6 KB)

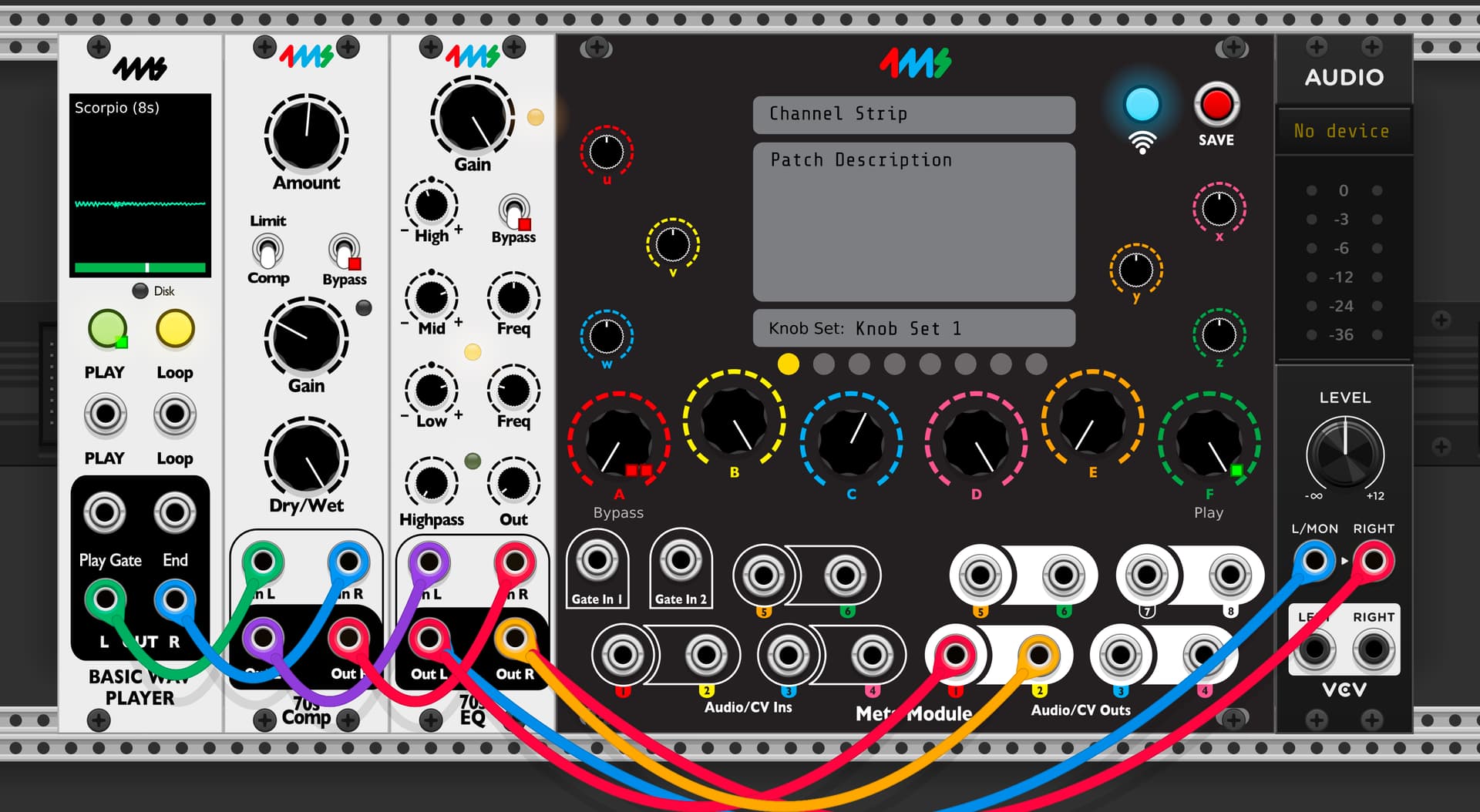

Patch #3: Channel Strip
External Audio Path:
-Main audio outputs on channels 1 and 2
Internal Audio Path:
-Stereo outs from Basic WAV player are fed into 70s Comp
-70s Comp is fed into 70s EQ
MetaModule Knob Mapping:
A - Bypass for 70s Comp & 70s EQ
F - Play: Basic WAV Player
Channel Strip.vcv (1.6 KB)
Channel Strip.yml (3.2 KB)
