You can watch Pitch Shifted Delay on YouTube here!
NOTE Please place the following files in the same directory as your patch file and load them into the Basic Wav Player:

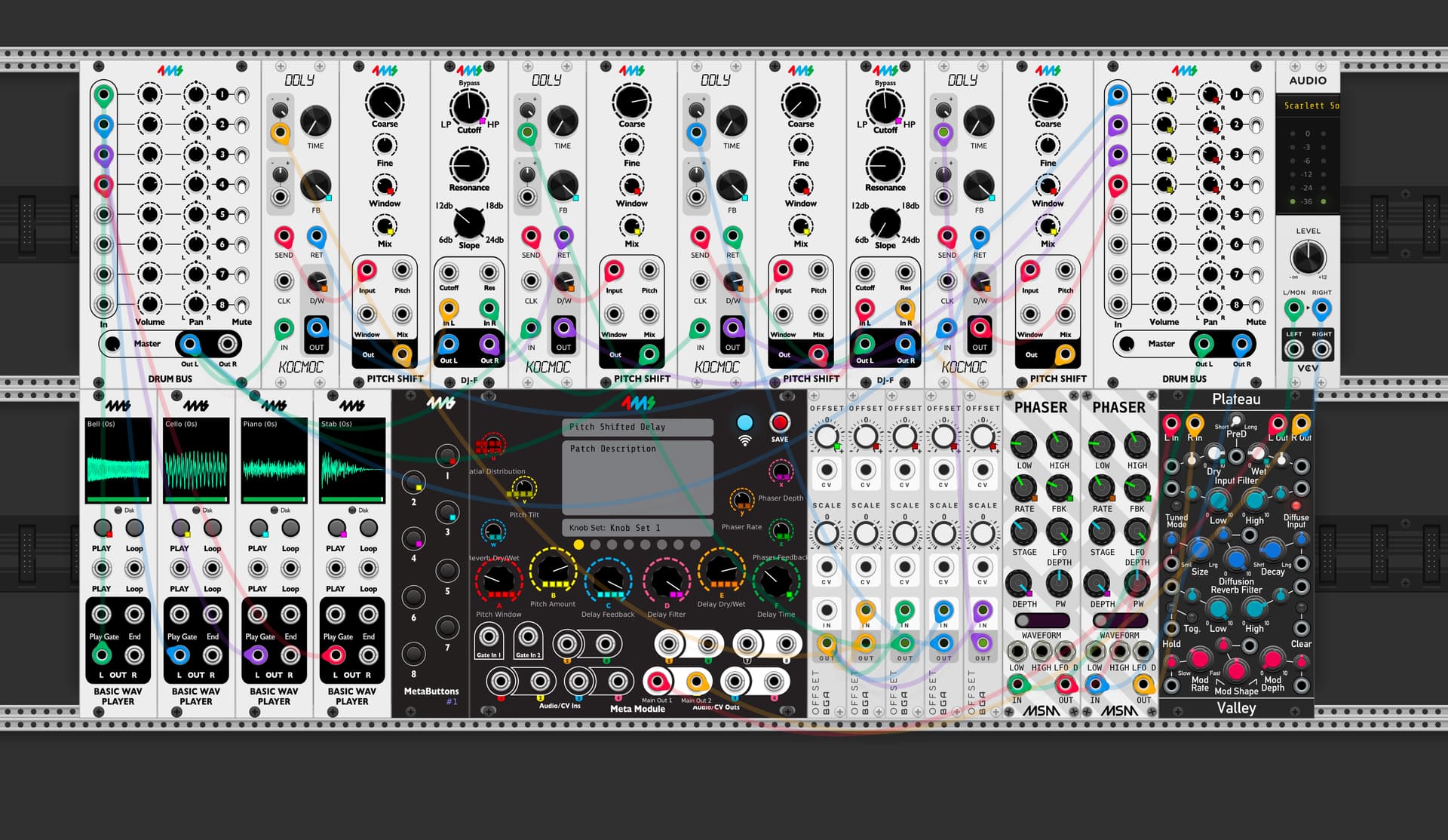

External Audio Routing:
-Main audio outputs on channels 1 and 2
Internal Audio Routing:
-Four basic wav players are mixed together with drum bus
-The output of the drum bus is fed to four delay modules
-In the feedback loop of each delay module there is a pitch shifter followed by a lowpass filter
-The outputs from each delay line are mixed together with a second Drum Bus.
-The output of the drum bus is fed into a stereo 8 pole phaser
-The phaser is fed into a reverb
Internal CV Routing:
-A single offset is being controlled by the spatial distribution knob
-This offset is fed into 4 subsequent offsets that get spanned in opposite directions
-These four offsets go to the timing of each delay line
MetaModule Knob Mapping:
A - Pitch window
B - Pitch shift amount
C - Delay feedback
D - Delay filter
E - Delay dry/wet
F - Delay time
U - Spatial distribution
V - Pitch tilt (blend from low pitches to high pitches)
W - Reverb Dry/Wet
X - Phaser depth
Y - Phaser rate
Z - Phaser feedback
MetaModule Button Mapping:
1 - Trigger basic wav player 1
2 - Trigger basic wav player 2
3 - Trigger basic wav player 3
4 - Trigger basic wav player 4
Pitch Shifted Delay.vcv (5.0 KB)
Pitch Shifted Delay.yml (24.4 KB)
