External Audio Path:
-Audio output on channel 5 and 6 as monitor
-XYZ Outputs on channels 1 2 and 3

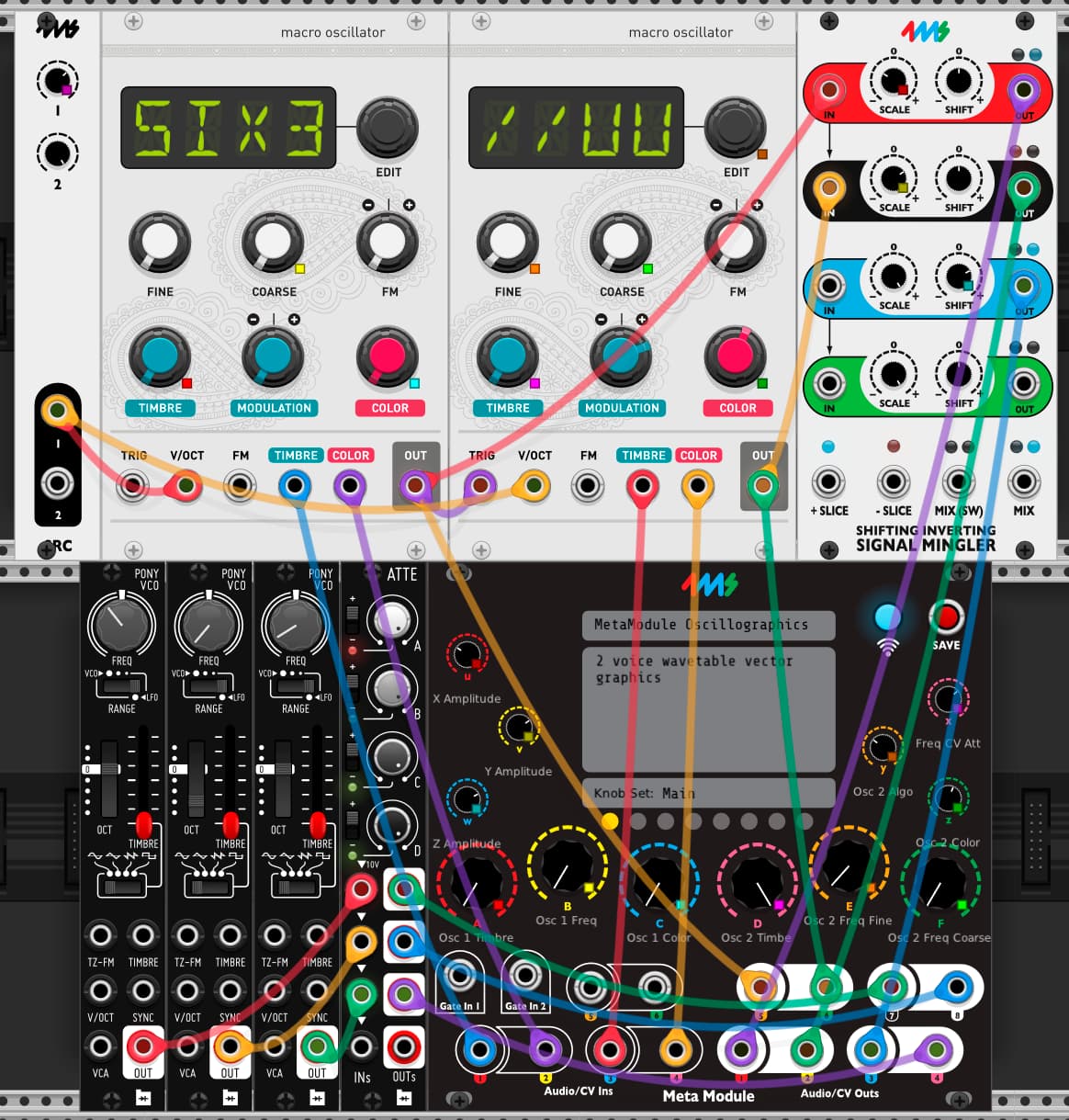

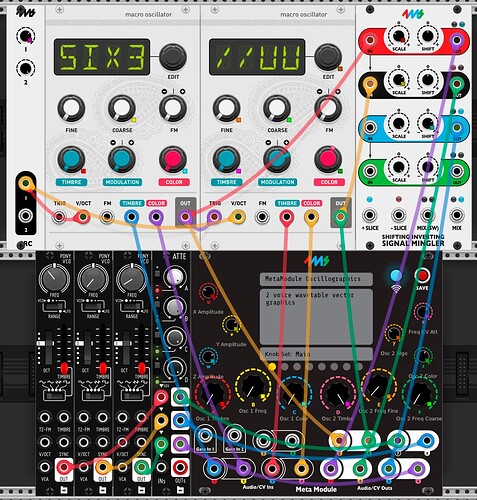

Internal Audio Path:
-Two macro oscillators run through an attenuverter.
Internal CV Path:
-An offset controls the frequency of both oscillators so they have a shared ratio.
External CV Path:
-3 LFOs are mapped to outputs 4, 7 and 8 for utility.
Metamodule knob mappings:
Knob Set 1:
A - Oscillator 1 Timbre
B - Oscillator 1 Frequency Coarse
C - Oscillator 1 Color
D - Oscillator 2 Timbre
E - Oscillator 2 Frequency Fine
F - Oscillator 2 Frequency Coarse
U - X Amplitude
V - Y Amplitude
W - Z Amplitude
X - Frequency CV Offset
Y - Oscillator 2 Algorithm
Z - Oscillator 2 Color
Knob Set 2:
A - LFO 1 Frequency
B - LFO 2 Frequency
C - LFO 3 Frequency
D - LFO 1 Amplitude
E - LFO 2 Amplitude
F - LFO 3 amplitude
Oscillographics.vcv (2.3 KB)
Oscillographics.yml (9.7 KB)
