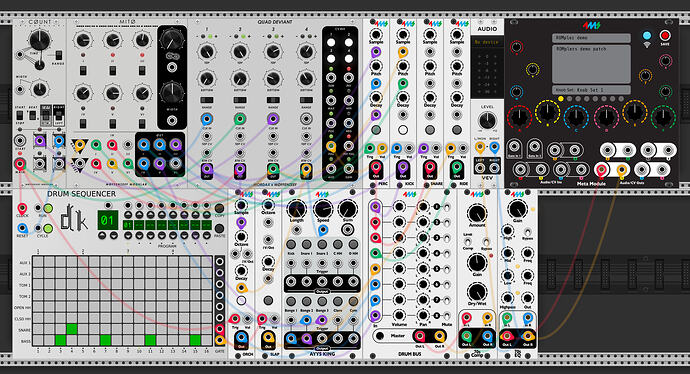

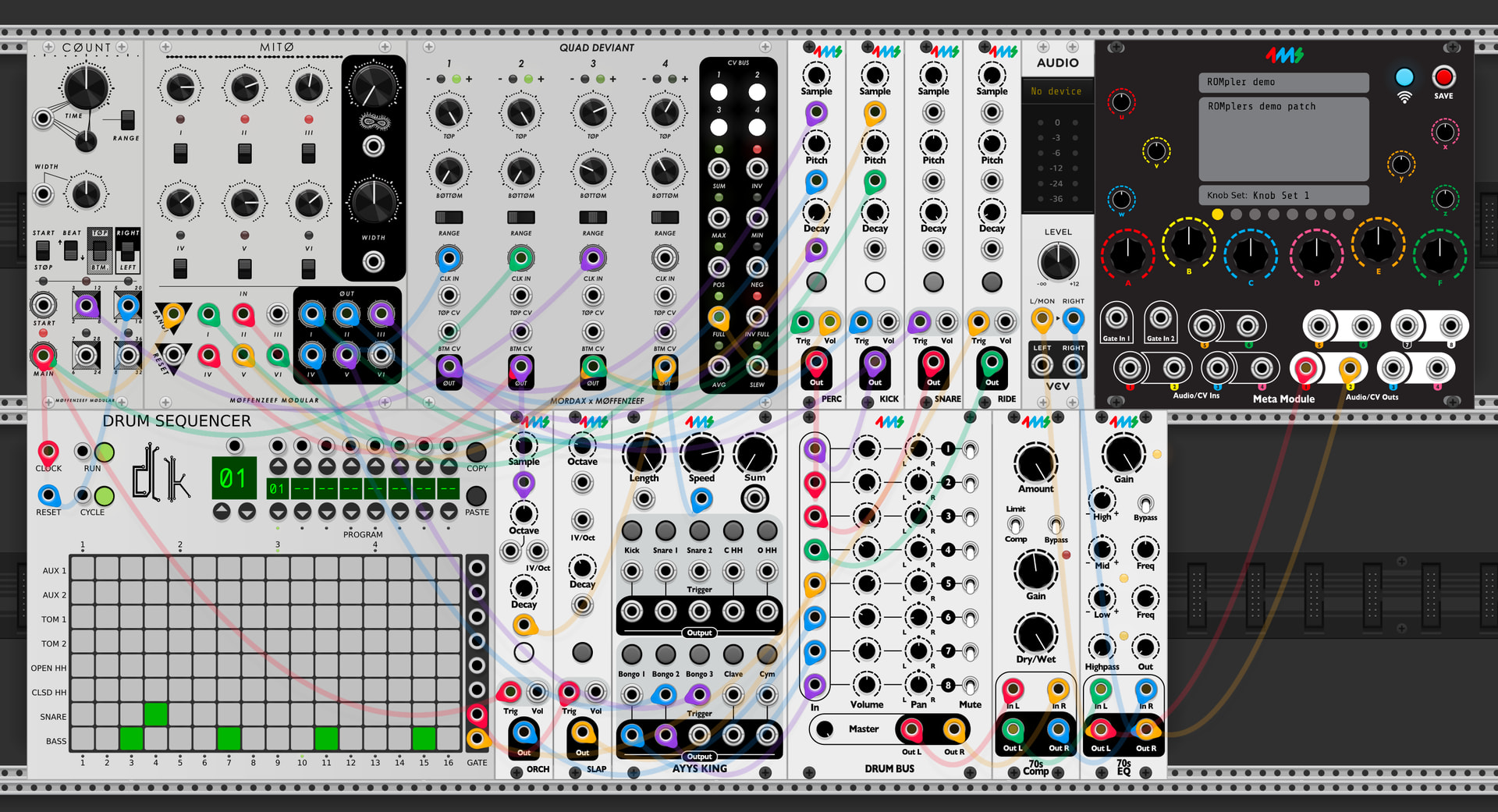

The video for this patch is on YouTube here!
External Audio Routing:
-Main Audio outputs on channels 1 and 2
Internal Logic Routing:
-Main clock from count is clocking MITO, drum sequencer, and a channel of Deviant
-Trigger outputs from MITO are triggering 5 ROMplers
-Gate outputs from Drum Sequencer are triggering two ROMplers
Internal CV Routing:
-Outputs from Deviant are randomizing sample selection, pitch, and decay for a variety of ROMplers
Internal Audio Routing:
-All ROMplers are mixed together with Drum Bus
-Drum Bus is fed into 70s Comp and 70s EQ for final polishing
ROMpler demo.vcv (3.7 KB)
ROMpler demo.yml (32.4 KB)
