You can watch the video for this patch on YouTube here!

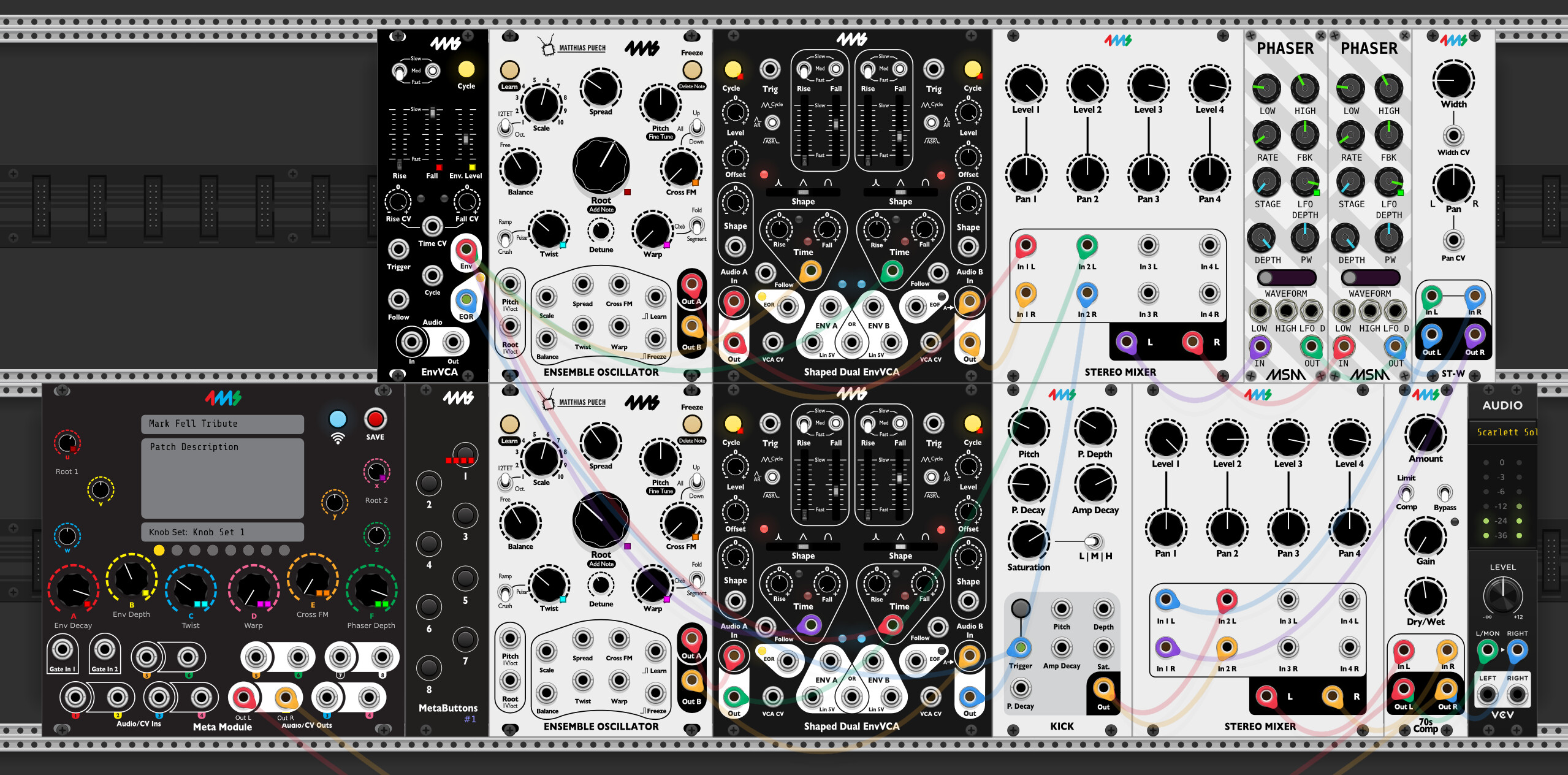

External Audio Routing:
-Main audio outputs on channels 1 and 2
Internal Audio Routing:
-The stereo outputs two Ensemble oscillators are fed into two Shaped Dual EnvVCAs
-The SHEV’s are mixed together with a stereo mixer and then fed into an MSM phaser
-A stereo width module narrows the stereo field
-The output of the stereo width module goes to to a secondary mixer.
-A kick drum is mixed with the phase shifted ensembles
-The final mix is compressed with a 70s comp.
Internal CV Routing:
-Both SHEV’s are set to self cycle.
-An external ENVVCA is also set to self cycle. It’s output is fed into the time input of all 4 SHEV channels responsible for amplitude modulation
-The EOR output of the ENVVCA triggers the kick drum
MetaModule Knob Mapping:
A - Env decay for modulating envelope
B - Env depth for modulating envelope
C - Twist for both Ensembles
D - Warp for both Ensembles
E - Cross FM for both Ensembles
F - LFO depth for phasers
U - Ensemble 1 Root note
X - Ensemble 2 Root note
Button 1 - SHEV cycle on/off
Mark Fell Tribute.yml (13.8 KB)
Mark Fell Tribute.vcv (3.1 KB)
