Download LoFi Tape Simulator Guitar Track Here
External Audio Path:
-Main audio outputs on channels 1 and 2.
-Main audio input on channel 1 when patched (Basic WAV player is normalized to effect input)

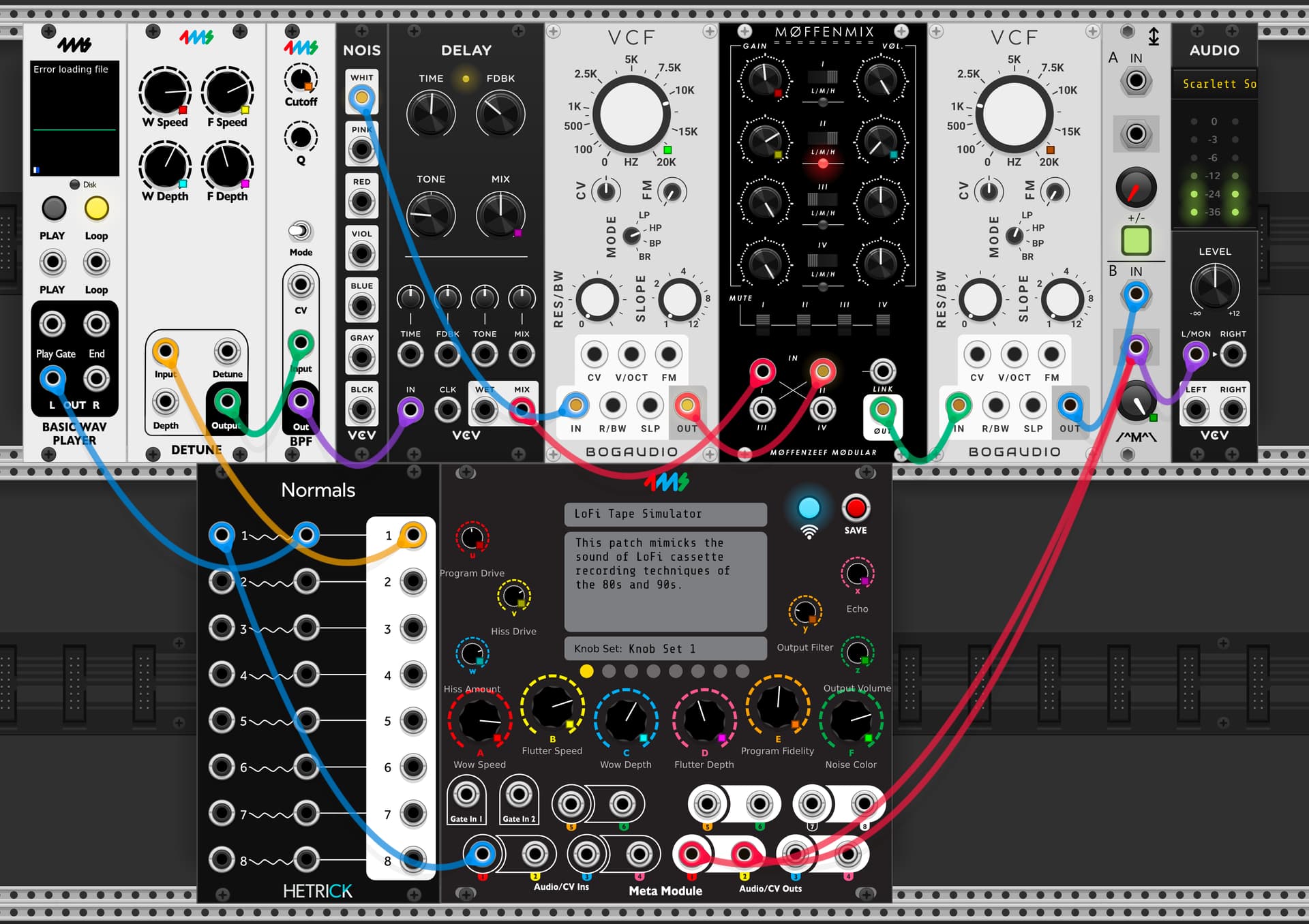

Internal Audio Path:
-A Basic WAV player is normalized to the input of the effect
-A Detune module provides wow and flutter for pitch modulation
-After the Detune a bandpass filter is applied
-A simple echo effect is applied to the filtered audio
-A noise source is fed into a highness filter
-Both the bandpassed and echo’d audio and the filtered noise source are mixed together into Moffenmix, which provides overdrive.
-A lowpass filter is applied after Moffenmix to mimic consumer grade noise reduction
-A main output attenuator is applied after noise reduction.
MetaModule Knob Mappings:
A - Wow speed
B - Flutter speed
C - Wow depth
D - Flutter depth
E - Program fidelity (bandpass cutoff)
F - Noise color (noise filter)
U - Program drive (bandpass overdrive)
V - Hiss drive (filtered noise overdrive)
W - Hiss amount
X - Echo
Y - Output filter (lowpass cutoff)
Z - Output volume
LoFi Tape Simulator (1).vcv (2.5 KB)
LoFi Tape Simulator (1).yml (7.5 KB)
