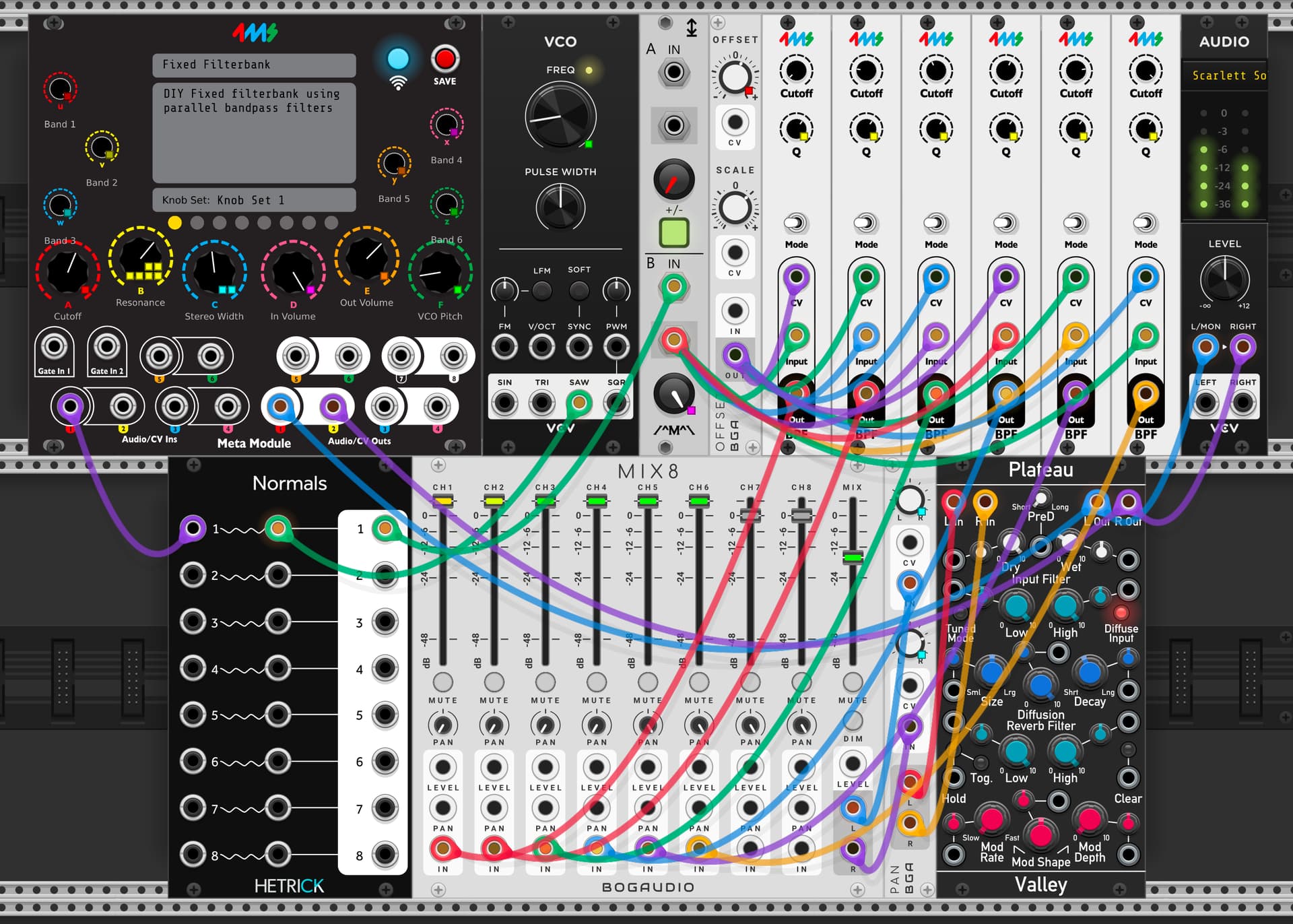

You can watch Fixed Filterbank here!
External Audio Path:
-Main audio outputs on channels 1 and 2.
-Main audio input on channel 1 (VCO internally normalized when not patched).
Internal Audio Path:
-A sawtooth wave VCO is normalled into the input of the fixed filter bank.
-8 bandpass filters have the same audio input running into them.
-The output of the filters are mixed together using an 8 channel mixer.
-Bands 1,3 and 5 are panned left. Bands 2, 4 and 6 are panned right.
-The output of the mixer is fed into a pan module, which is mapped to a macro on MetaModule that changes the output from mono to stereo (odd bands panned left, even bands panned right)
-The output of the pan module goes to a. Reverb.
Internal CV Path:
-An offset module controls the CV of all of the filters and is mapped to a MetaModule macro knob.
MetaModule Knob Mapping:
A - Cutoff
B - Resonance
C - Stereo Width
D - Input volume
E - Output Volume
F - VCO pitch
U - Band 1 Volume
V - Band 2 Volume
W - Band 3 Volume
X - Band 4 Volume
Y - Band 5 Volume
Z - Band 6 volume
